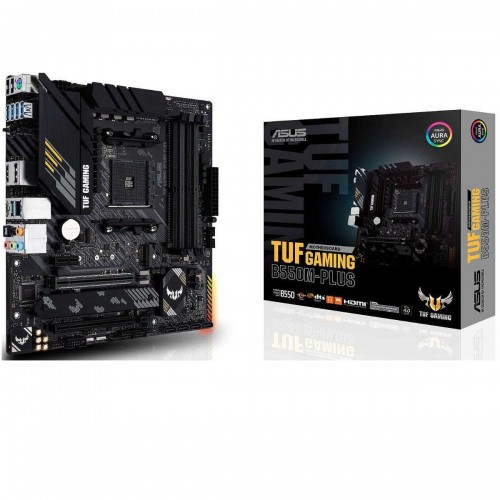

Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard

Price: 21300৳ ~~22500৳~~
Regular Price: 22500৳
Status: In Stock
Product Code: 59723
Brand: Motherboard

Model: Asus TUF Gaming B550M-Plus
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Made for online gaming

View More Info

21300৳ ~~22500৳~~ Cash Discount Price Online / Cash Payment

For regular delivery, you can receive the product within 12 to 24 working days, and for express delivery, within 7 days. In this case, the full payment for the product must be made in advance. For more details, please contact us.

2-3 Working Days For Ready Stock Delivery 12-24 Working Days For Pre-Order Delivery Lifetime Support for Our Customers

For regular delivery, you can receive the product within 12 to 24 working days, and for express delivery, within 7 days. In this case, the full payment for the product must be made in advance. For more details, please contact us.
2-3 Working Days For Ready Stock Delivery	12-24 Working Days For Pre-Order Delivery	Lifetime Support for Our Customers

Specification

Basic Information
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B550
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Expansion Slots
PCI	3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1
M.2 Socket	3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DDR4 memory slots
Supported Memory	3rd Gen AMD Ryzen Processors 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen with Radeon Graphics Processors 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU
Maximum Memory	128GB
Graphics
Graphics	1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI	1 x HDMI 2.1(4K@60HZ)
Display Port (s)	1 x DisplayPort 1.2

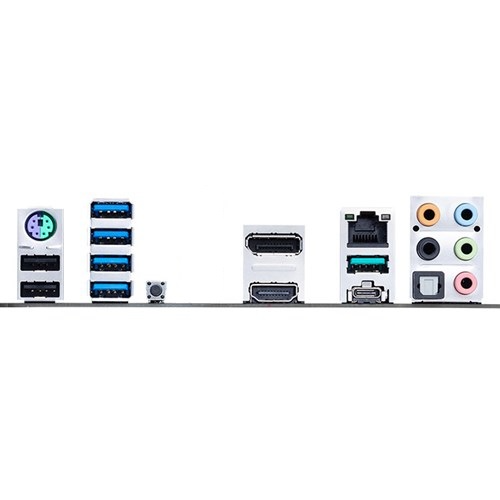

USB (s)	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s)	Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard
Supported Storage	Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Audio	Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
TPM (Trusted Platform Module )	1 x SPI TPM header
Others
Special Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS TUF PROTECTION - ASUS DIGI+ VRM (Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header
Warranty Information
Manufacturing Warranty	03 Years Warranty

Description

Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard

The Asus TUF Gaming B550M-Plus is a microATX motherboard designed for AMD Ryzen processors with an AM4 socket. Featuring PCIe 4.0, military-grade components, robust power delivery, and advanced cooling solutions, it provides stability, durability, and high performance for gaming and content creation. With dual M.2 slots, Wi-Fi 6 support, and enhanced audio, this motherboard is perfect for gaming PC builds.

Key Features of Asus TUF Gaming B550M-Plus

1. AMD Ryzen Processor Compatibility

The Asus TUF Gaming B550M-Plus supports AMD Ryzen 5000, 4000, and 3000 series processors with an AM4 socket, ensuring excellent gaming and multitasking performance.

2. PCIe 4.0 for High-Speed Performance

With PCIe 4.0 support, this motherboard enables faster data transfer and better graphics performance, making it ideal for modern GPUs and NVMe SSDs.

3. Military-Grade TUF Components

Built for durability, this motherboard includes:

TUF capacitors and MOSFETs for stable power delivery
SafeSlot PCIe reinforcement for better GPU support
ESD protection and stainless steel back I/O panel

4. Dual M.2 Slots with NVMe Support

The dual M.2 slots allow for high-speed NVMe SSD installation, improving system boot times and game load speeds.

5. Comprehensive Cooling System

For optimal thermal performance, the motherboard features:

Large VRM heatsinks for better cooling
PCH heatsink to prevent overheating
Multiple fan headers with Fan Xpert 2+ for customized cooling

6. High-Speed Networking with 2.5G LAN & Wi-Fi 6 (Optional)

The 2.5G LAN port provides stable and ultra-fast wired connectivity
The Wi-Fi 6 version (B550M-Plus Wi-Fi) offers high-speed wireless networking

7. AI Noise-Canceling Mic & DTS Audio

AI noise-canceling microphone ensures clear voice communication for gaming
DTS Custom Audio enhances immersive gaming sound

8. USB 3.2 Gen 2 & USB Type-C Connectivity

Equipped with USB 3.2 Gen 2 and USB Type-C ports, this motherboard ensures faster data transfer speeds and better device compatibility.

9. ASUS Aura Sync RGB Lighting

ASUS Aura Sync allows for customizable RGB lighting, letting you personalize your gaming setup with synced lighting effects.

Buy Asus TUF Gaming B550M-Plus from Hossain Electronics & Computer

If you need a reliable, high-performance microATX motherboard for gaming or professional work, the Asus TUF Gaming B550M-Plus is a great option. At Hossain Electronics & Computer, we provide genuine Asus products with warranty support.

Visit our store or order online to get the best deals on the Asus TUF Gaming B550M-Plus motherboard.

What is the price of Asus TUF Gaming B550M-Plus in Bangladesh?

The Asus TUF Gaming B550M-Plus motherboard price in Bangladesh depends on availability and market trends. At Hossain Electronics & Computer, we offer competitive prices and special discounts for gamers and PC enthusiasts.

Contact us today or visit our website to check the latest price and offers.
